4 Inch Full range Speaker L8 + L212BA Columna Loudspeaker with Active Dual 12 Inch Subwoofer for Line Forum Speaker
- Conspectus
- Producta Commendata
- Conventus locus, Hass, Ballroom
- Concentus, Aula, Ecclesia
- Parvum et medium touring soni requisita
- Accessiones sonus subsidii ratio
L6 8x4 inch plena range columnae loudspeaker ac XII inch activae subwoofer
Applicatio :
Caracteristicae :
1. Dignum est altum postulatis linguae soni subsidii loca
2. 8 x4 inch plena frequentia loquentium et perpendiculum ordinata design, sonum purum et plenum fac, soni tradendi quaestum sanae subsidii systematis emendare, ac uniformitatem campi soni curare.
3. Summus potentia, summus sensus, parva magnitudo, plena frequentia loquentis unitates ad hifi exquisita perficientur dant.
4. Opus cum L212BA activum dualis 12 inch subwoofer eloquens ad formandum activum "multiplex in uno" sonum supplementi systematis pacti modularis.
5. Facilis et celeris institutionem, non opus est oratore cable et tabulis.
------------------------------------------------------------------------------------------------------
1. L212BA in III channel active amplificator potentiae modulorum (1200W/8Ωx 1 ,400W/8Ωx2 ),et DSP * (2 input 4 output )Digital audio processus munus .
2. L212BA cum iungo in summo ad aequare L6 et L8 loquentis, fac reclinant et 2-modo ratio sana
Specification:
|
Parametrum |
|
|
Numerus Moduli. |
L8 |
|
Frequency Responsio |
150Hz -18kHz (-10dB ) |
|
Sensibilitas ( 1W/1m ) |
96dB |
|
Impedimentum nominale (Ω) |
12Ω |
|
Rated Power (W) |
480W (AES) |
|
Orator Unit |
8-4 inch plena range speaker unitas (25mm/1inch vox coil diameter) |
|
Nominal Coverage (HxV) |
70°×10° |
|
Max SPL(SPL) |
123dB(Perge), 129dB(Peak) |
|
Suspensionis Hardware |
10xM8 Necessaria |
|
Conectora |
2xNL4MP,1+1- |
|
Finis Painting |
Aquae nigrae, secundum picturam |
|
Dimensio (W×D×H) |
127×152×958(mm) |
|
Ponderis netum |
13 (kg) |
|
Parametrum |
|
|
Numerus Moduli. |
L212BA |
|
Frequency Responsio : |
50Hz-250Hz(±3dB)/42Hz-300Hz(-10 dB) |
|
Sensibilitas ( 1W/1m ) : |
99dB |
|
Impedimentum nominale : |
8Ω |
|
Potentia Aestimata : |
600W |
|
Orator Unit : |
15 inch subwoofer (100mm/4inch voice coil diameter) |
|
Max SPL (Perge / Pecco) |
126dB/132dB |
|
amplificator potentiae modulorum : |
1000W/8Ωx 1 ,400W/8Ωx2 |
|
DSP : |
Digital audio processus munus |
|
Potentiae copia : |
AC110-250V |
|
SNR : |
≥ 98db |
|
THD |
< 0.2% |
|
Connector : |
2xNL4MP 1+1- |
|
Dimensio (W×D×H) : |
505-445×730 (mm ) |
|
Ponderis netum : |
35kg |
Dimension :

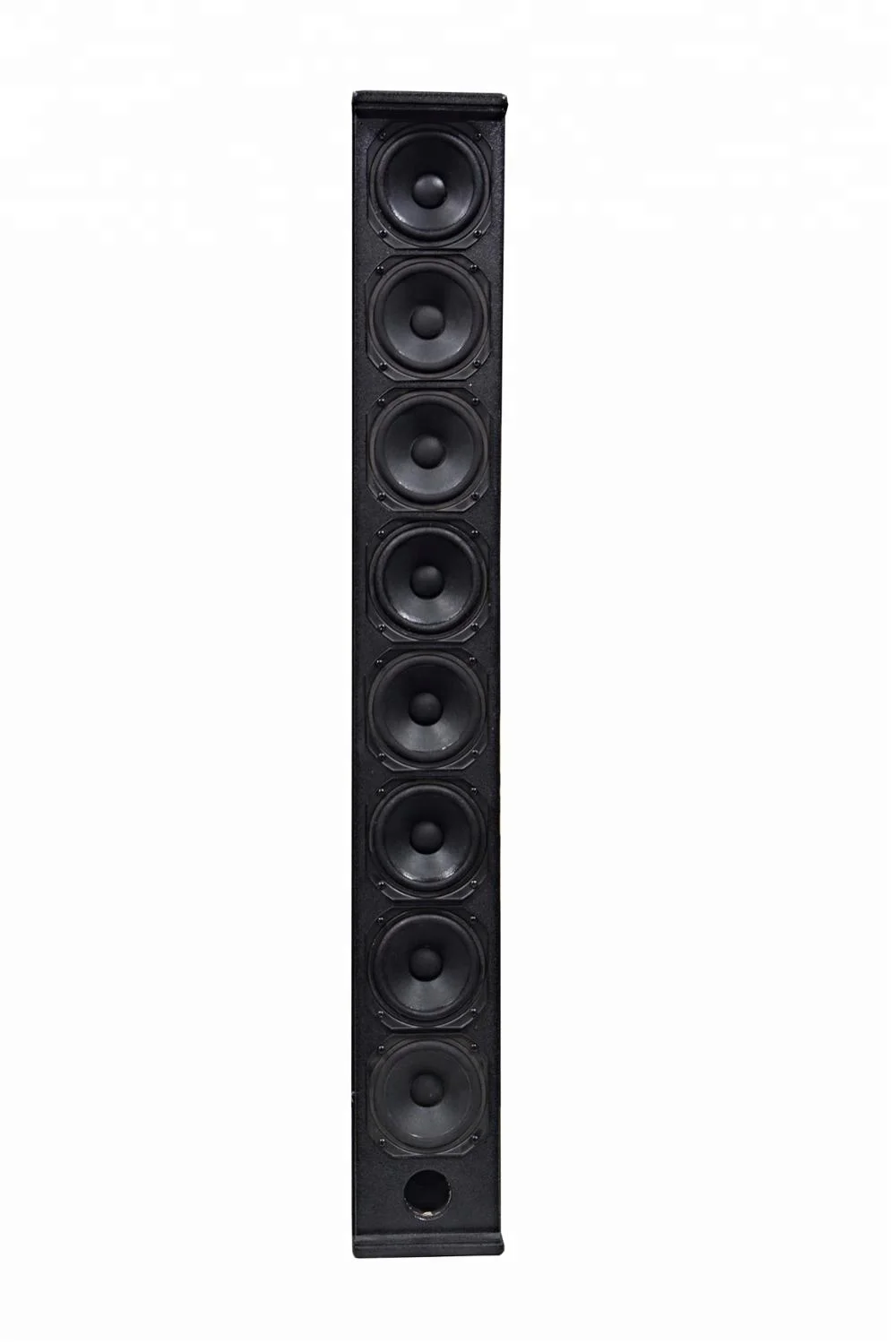

Full range speaker L8

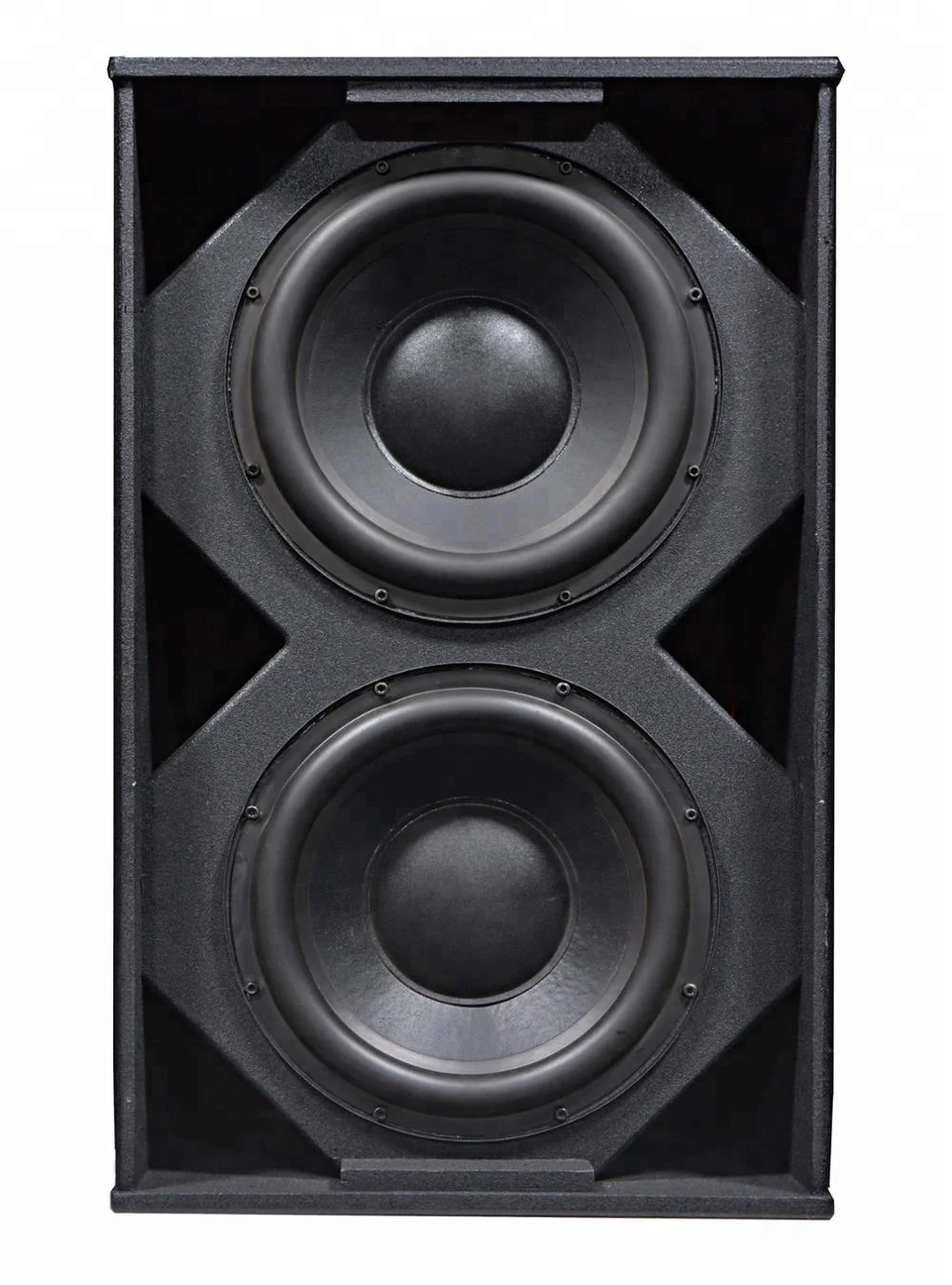

12 inch Subwooofer L212BA
L6 6x4 inch plena range columnae loudspeaker ac 12 inch activae subwoofer
