Product Description
Feature :
Built-in 4x3.5-inch full-range unit, combined with array arrangement coplanar coupling technology, provides smooth frequency response curve and wide coverage angle, with very high speech intelligibility and high-fidelity timbre.
The compact small cabinet has high SPL output, high-fidelity sound reinforcement performance, and can be formed into multiple vertical arrays, and is easy and quick to install, providing a high-definition solution for fixed installations and small mobile sound reinforcement systems.
|

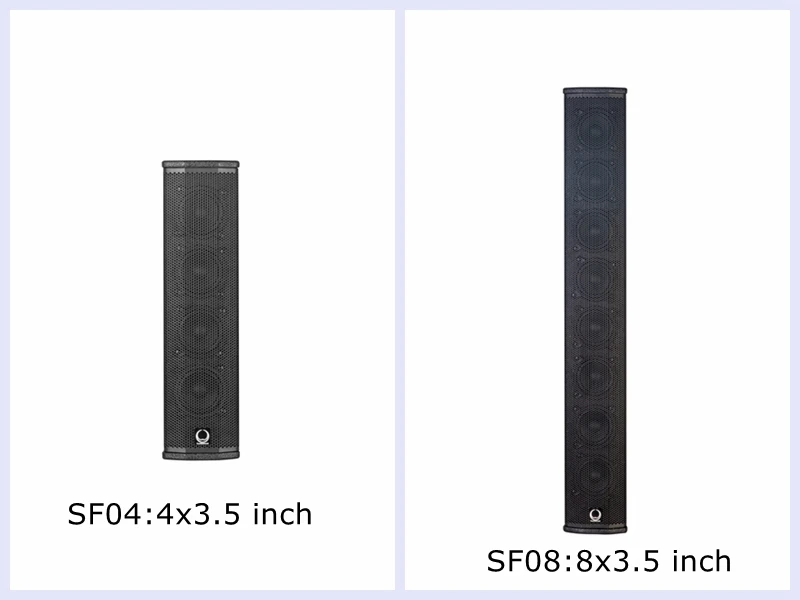

Model No.
|
SF04
|
SF08 |
|
Size
|
4X3.5 inch
|
8X3.5 inch
|
|
Product name
|
Full range speaker
|
Full range speaker
|
|
Impedance (Ω)
|
8
|
8
|
|
Frequency response
|
160hz-17khz
|
160hz-17khz
|
|
Speaker driver
|
4x3.5 inch
|
8x3.5 inch
|
|
AES power handling
|
300W
|
600W
|
|
Sensitivity (1w/1m)
|
95dB
|
97dB
|
|
Box structure
|
Sealed
|
Sealed
|
|
Box material
|
Wood
|
Wood
|
|
MAX SPL
|
123dB
|
128dB
|
|
Nominal coverage angle
|
160°x40°
|
160°x30°
|
|
Dimension
|
119x115x446mm
|
119x115x805
|
|
Net weight
|
2.5 kg
|
4.6kg
|
|
Gross weight
|
3.5 kg
|
6.5 kg
|
Dimension :
