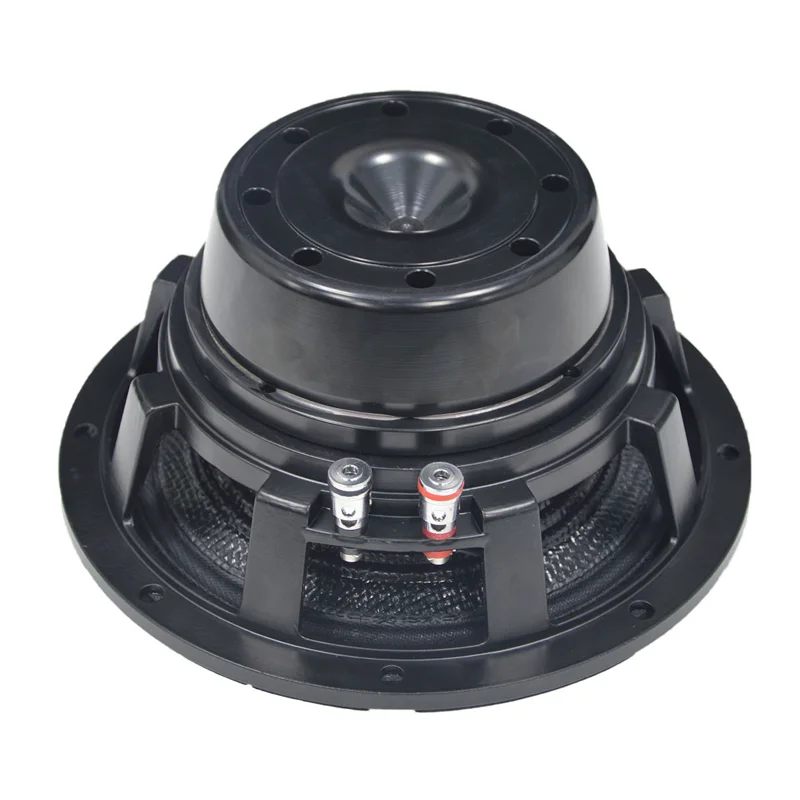

8-Inch Neodymium Carbon Fiber Cone Midbass Speaker Outdoor Audio Loudspeaker for Audio Applications
- Overview
- Recommended Products
- 8 inch midrange speakers
- Heavy duty Carbon Fiber cone
- 500Wrms power handling
- 3 inch copper inside/outside voice coil
Product Description

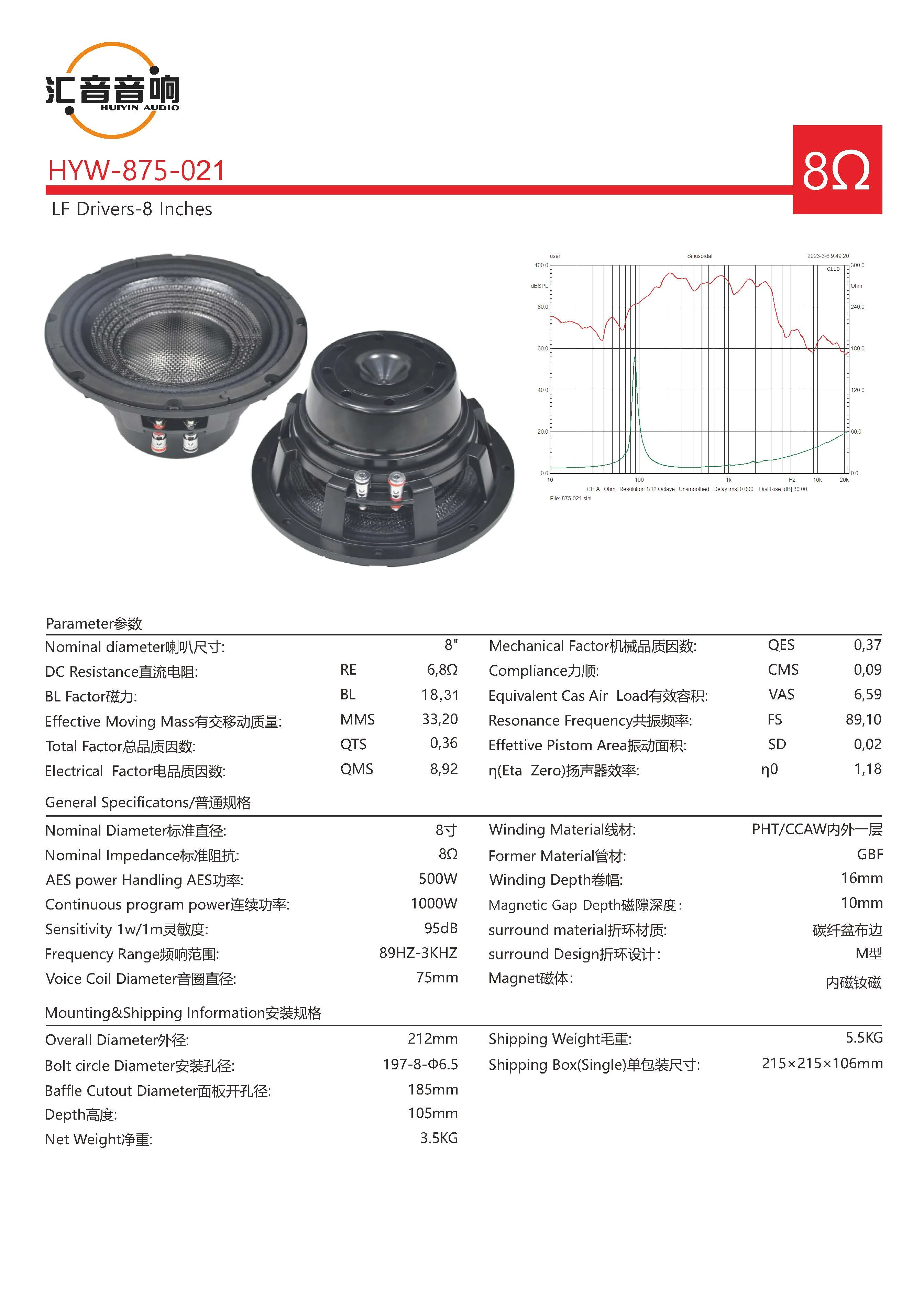

Specification | ||
Nominal diameter |
212/8 |
mm/inch |
Nominal impedance |
8 |
ohm |
Min impedance LF |
6.8 |
ohm |
Frequency response |
89-3k |
Hz |
Magnet size |
mm |
|
Magnet material |
Neo |
|
Sensitivity (1w/1m) |
95 |
dB |
Nominal power handling |
500 |
Watts |
Max power handling |
1000 |
Watts |
Voice coil diameter |
75/3" |
mm/ inch |
Winding material |
Copper |
|
Cone material |
Fibra Cone |
|
Surround material |
Cloth |
|
Fs |
89.1 | Hz |
Re |
6.8 |
Ω |
Qes |
0.37 |
|
Qts |
0.36 |
|
Qms |
8.92 |
|
Vas |
6.59 | |
Cms |
0.09 |
|
Mms |
33.2 |
|
BL |
18.31 |
|
